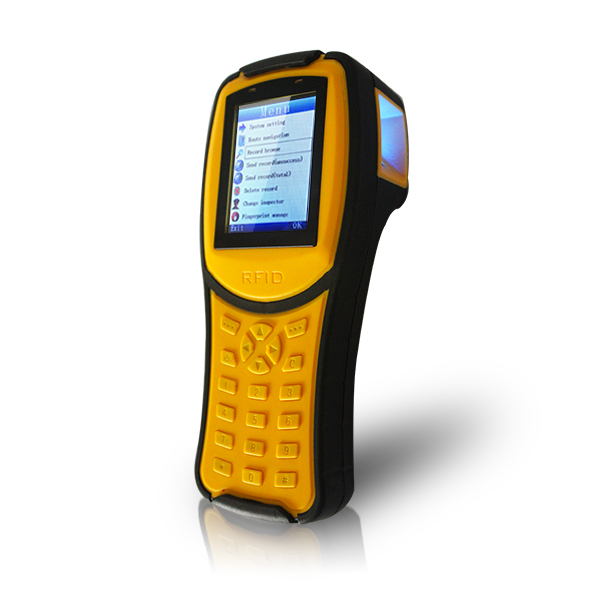

FG-1 2G 3G Real Time Guard Patrol RFID Reader with Fingerprint Verification
Fingerprint technology:
Based on finger mark technology, completely forbidden patrol replacement
Appearance:
Engineering plastic shell, Waterproof, Durable, Resistant high and low temperatures.
Read mode:
Automatic induction and Non-touch reading of RFID tag
Support Language:
Support simplified and traditional Chinese, English (other language can be tailored)
Color display:
LCD screen can show tag ID, patrol route and Power state etc.
Intelligent navigation:
Route Navigation, reread & miss-read remind.
Intelligent hints:
User friendly project input parameters prompt (MAX ,MIN ,Default)
Avaliable numerical value:
4 digits before decimal point, and 8 digits after decimal point. For example “8888.88888888”
Unit Define:
Support 250 units.
Item Management:
Self-define the parameter of the patrol point and data collection.
Data Browsing:
Browse fingerprint, data, event, etc directly.
Warning function:
Full storage and low battery warning
Rights Management:
Multilevel fingerprint rights management
Input function:
Key in function, collecting the data very easy to
Lager capacity:
The record up to 10,000PCS
Security:
Data can be stored for 30 years without power
Communication:
GPRS function, remote data transmission real time.
RFID GPRS Guard Tour System,Guard Tour Patrol System
Technical Information:
Physical | Engineering plastic shell, waterproof, shockproof |
Max Fingermark | 300 PCS (10pcs for manager, 290pcs for inspector) |
Display | TFT 2.4’ 240*320 Color screen |
Memory Capacity | 10,000 logs |
Support language | Chinese, English, French, Turkish etc. |
Read response | ＜0.1S |
Read distance | 3cm to 5cm |
Working temperature | -40°C to +70°C |
Working humidity | 30% to 95% |
Working frequency | 125KHZ |
Battery | 1350 mA rechargeable lithium battery |
Power consumption | 60mA to 160mA |
Communication | GPRS with cellphone card or USB cable |
Dimension | 170mm*75mm*40mm |
Net Weight | 270g |
Max Value | 0.0001-10million |
Item for each spot | 15pcs |
Logical option per item | 5PCS |
Unit Define | 250PCS |
Standardized Accessory | Lithium battery, Connection cable, Charger, Leather case, C/S Software. |
How to use FG-1 (2G 3G Real Time Guard Patrol RFID Reader with Fingerprint Verification ) system?
1)Take the FG-1guard tour patrol device, and scan your fingerprint to login as the current user.
2)Along the regulated patrol route; use the device to read the spot card by approaching to the spot card.
a.If the current spot needs confirm the identification, you should scan your fingerprint or ID card again.
b.If the fingerprint or ID card belongs to current user, you can edit the check items now. Otherwise you won’t get the permission to edit or update the data.
3) After input all the data and press ok button, system launches the GPRS model to upload the data to the web server. Then the patrol system software can deal with the data and display or print the result of the report. Any abnormal situation occurred during the patrol will be shown in time.
